Ozone Apex MA Wings
Apex MA Range

Lift and stability Vs. Speed and Manoeuvrability

The Apex V1 MA front wings offer an incredibly wide speed range.

In general, the larger the front wing the more lift you will have and the more stable the ride will be.
A larger front wing offers increased low wind/slow foiling speed performance, however your top speed and manoeuvrability will be slightly reduced when compared to a smaller front wing.

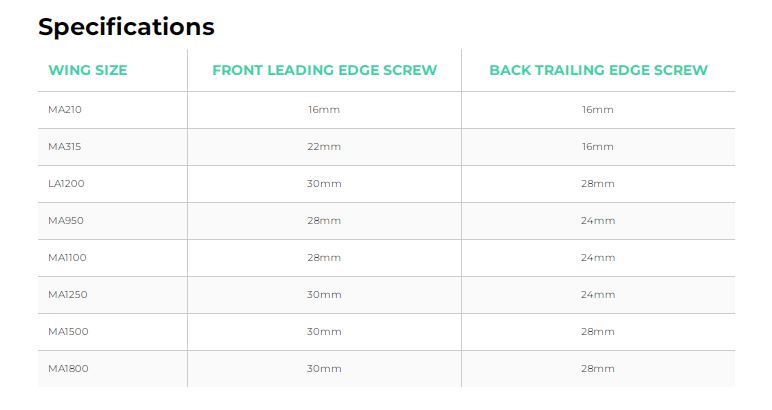

Apex MA Specs
Apex MA Kit

Light Weight,
Ultra Strong.

SIZES: 950 / 1100 / 1250 / 1500 / 1800

With easily accessible lift, pump and glide performance combined with precision and maneuverability the new Apex V1 MA hydrofoil range is ready to take your riding to the next level.

Performance designs, light weight, ultra strong full carbon construction finished with a high quality performance surface coating.

Available to order in Canada at: PBKiteboarding.com. Authorized Ozone Dealer since 2004.

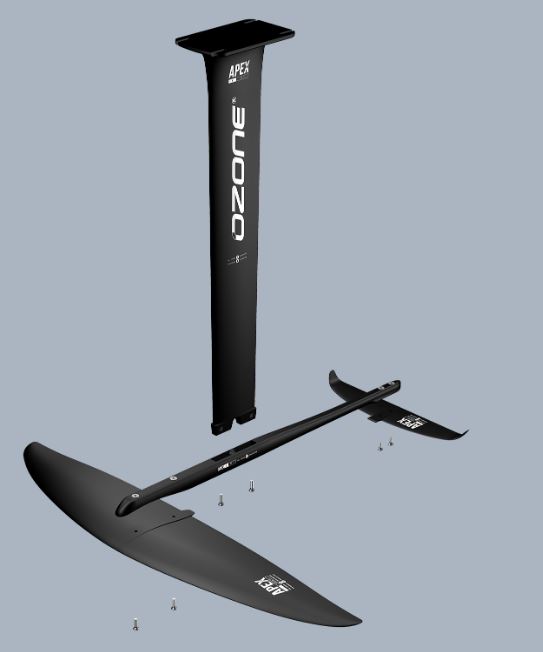

Apex MA Modular

Fully Modular

SIZES: 950 / 1100 / 1250 / 1500 / 1800

The entire Apex V1 hydrofoil series is fully modular - interchange front wings, rear wings, fuselages, masts and rear wing shims to customize your setup.

New mast and fuselage sizes compliment the all-new MA range of front and rear wings.

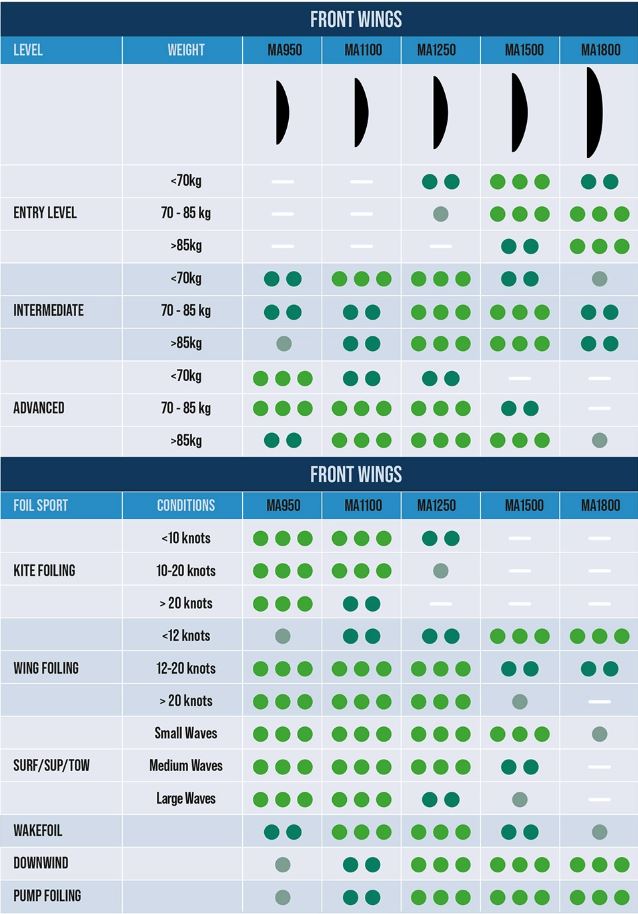

Apex MA How to Choose
Apex MA How to Choose

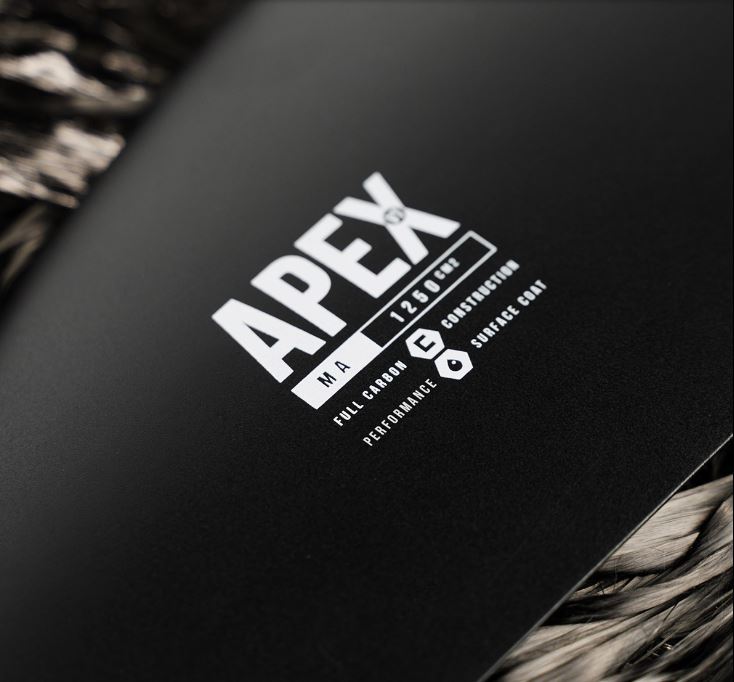

Full Carbon Construction

All parts are constructed with an optimum combination of high-density PVC or EPS foam cores and 100% carbon laminates for an incredible strength to weight ratio.

All laminations are comprised of a Quadraxial Carbon fiber matrix with high modulus epoxy resin creating superior rigidity in flex and torsion.
Apex MA Full Carbon Construction
Apex 75 95 Mast

Masts 75cm and 90cm:

Our unique mast construction features a hybrid core using a combination of high-density foam polymer and wood.

During our R&D process we found this was the optimum combination for incredible shear strength to weight ratio. The lamination is comprised of a Quadraxial Carbon fiber matrix with high modulus epoxy resin creating superior rigidity in flex and in torsion. The tapered outline adds extra strength without compromising speed. A slotted baseplate design allows easy fitting to the board. Titanium Barrel Nuts embedded in the mast provide durability and maximum strength at the mast to fuselage connection.
The 75cm Mast is an ideal length for all-round foiling. The 90cm is suited for intermediate to advanced riders foiling in higher winds, carving in choppy water conditions or riding waves.

Fuselage 68cm & 76.5cm:

Constructed for maximum stiffness and strength from a full carbon mono block.

Our unique Beamed Tuttle Box design increases strength at the mast to fuselage connection. Titanium Barrel Nuts embedded in the fuselage provide durability and maximum strength at the front and rear wing connections.
Apex V1 68cm Fuselage
Apex V1 Mast and Foils Surface Finish

Surface Finish:

All carbon parts are finished with an ultra high quality coating used in performance marine environments such as Americas Cup racing yachts. This unique coating provides UV protection to the carbon laminate and an optimum surface finish.

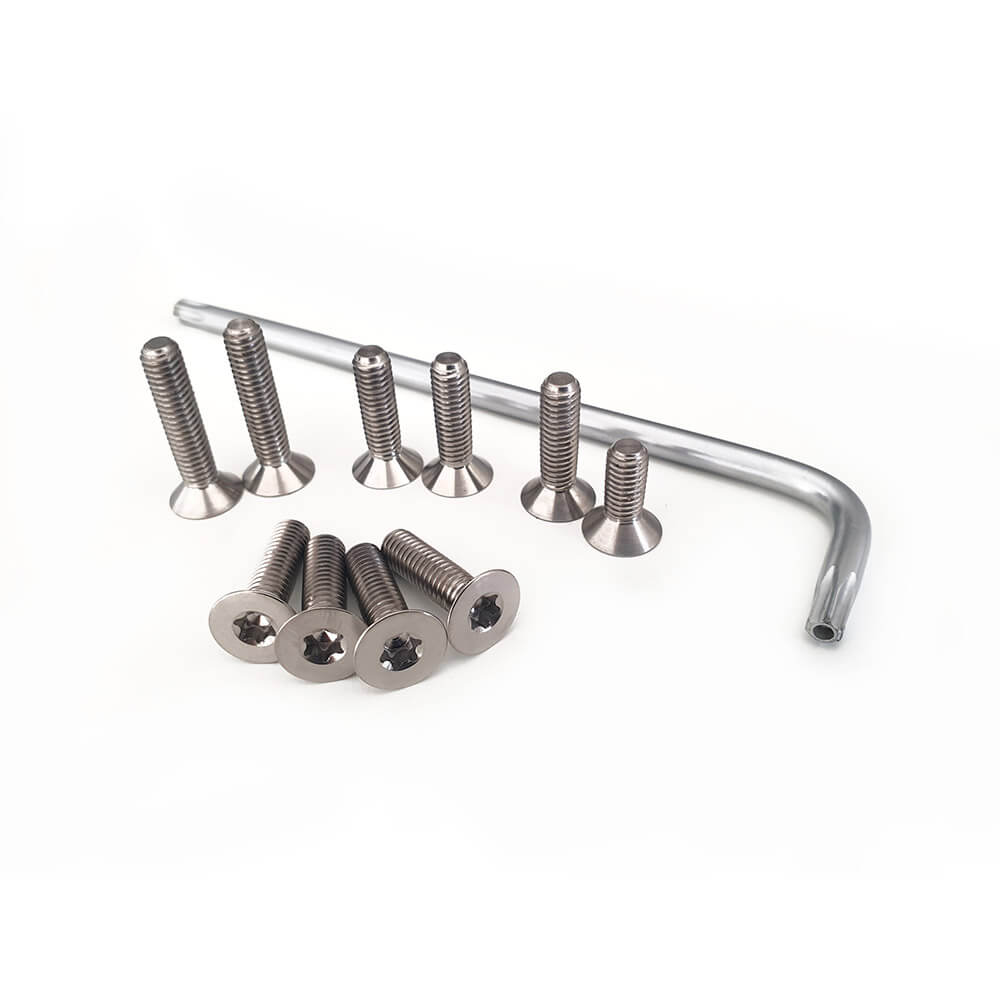

Titanium Hardware:

All screws and barrel nuts are CNC machined from GR5 Titanium with a Torx head fitting, guaranteeing zero corrosion and ultimate strength. Each complete Apex V1 foil is supplied with a Torx Key.
Apex V1 Titanium Hardware

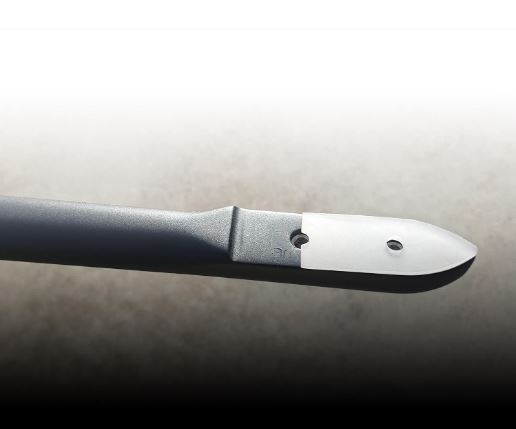

Apex V1 Shims

Understanding Shims:

The Apex V1 Rear Wing MA315 is factory set at the most stable configuration without a shim to provide incredible pitch and roll stability at slow to medium speeds, combined with enough front foot pressure to assist in learning maneuvers.

In general the performance effects of using negative degree shims to reduce the AOA are:
- increased top end speed and glide performance
- front foot pressure decreased, back foot pressure increased
- decreased pitch stability

The higher the degree value, the greater the effects will be. We recommend starting with the -0.5deg shim, then decreasing the AOA progressively with the -1deg and then -1.5deg to feel the effects and find your preferred setting.

Entry level to intermediate riders - if you feel too much front foot pressure, before fitting a shim to adjust the rear wing AOA, we recommend first adjusting the position of your foil on the board by moving the mast backwards. This will reduce front foot pressure without deceasing stability of the foil.

Protective Covers:

The Apex V1 foil kit comes complete with protective covers for the Mast, Front Wing and Rear Wing.

Constructed with high quality materials, padded foam layers and velcro closures. The Mast cover includes a pocket for storing the Torx tool, screws and Rear Wing Shims.
Apex V1 Foil Covers
Action Shot
  • Back

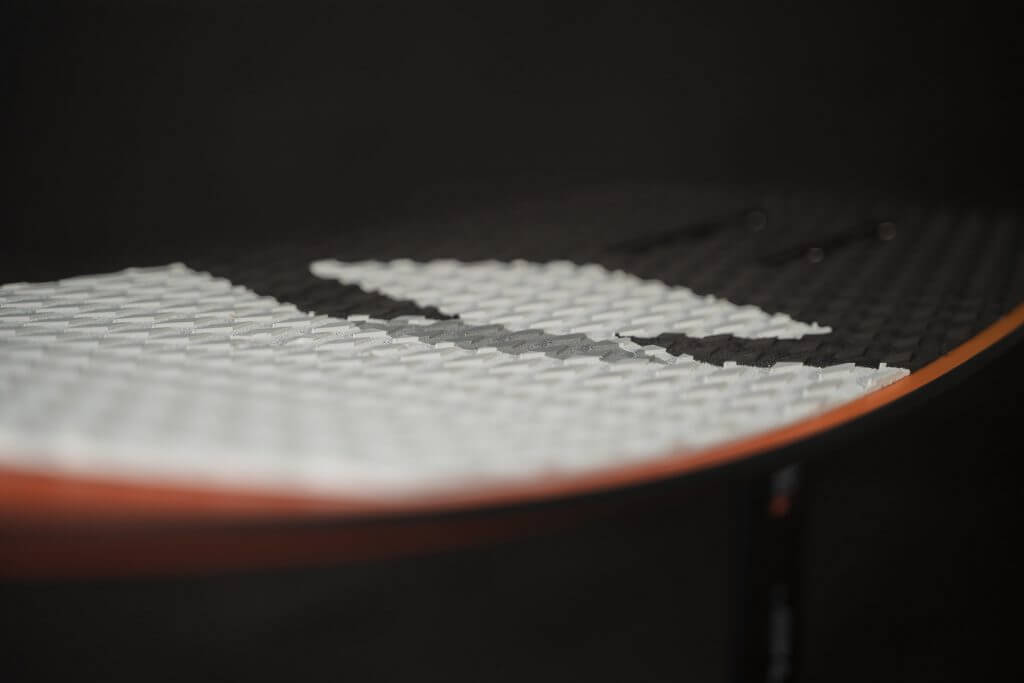

APEX V1 Board Product Shots
